EEE PC Internal USB Hub Mod – Part 1

4GB SSD is indeed insufficient for me. I watch animes and download quite a fair bit of stuffs and I often to delete them from the hard disk. So I need to hook up more storage! Internal USB hub modification is pretty common among the EEE PC fans. I also go onto the bandwagon and began wiring my USB hub!

I used 24AWG for the data lines, VCC and GND. Some pictures of my ugly wiring.

Internal USB Hub - wiring

Wiring up the USB hub for EEE PC

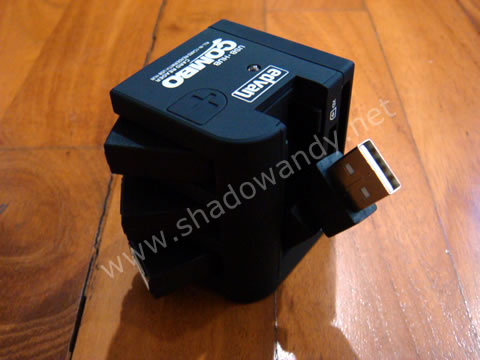

Internal USB Hub - Where it came from

Where the circuit board came from

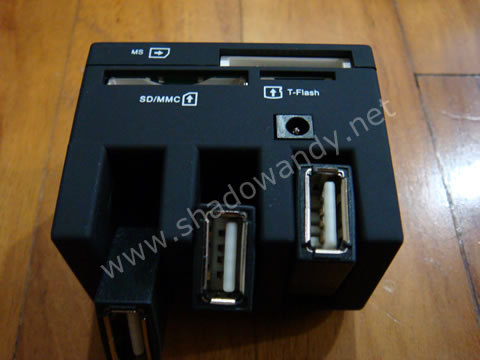

Internal USB Hub - Built in card reader

Built in card reader

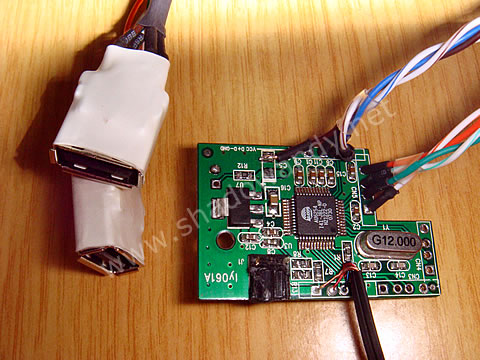

Internal USB Hub - 2 plugs wired

2 connectors wired. Few more to go

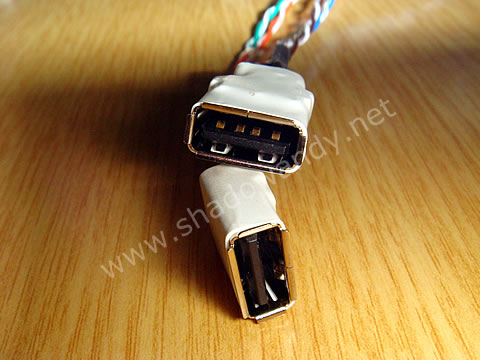

Internal USB Hub - Black plugs

Black connectors for my black EEE PC

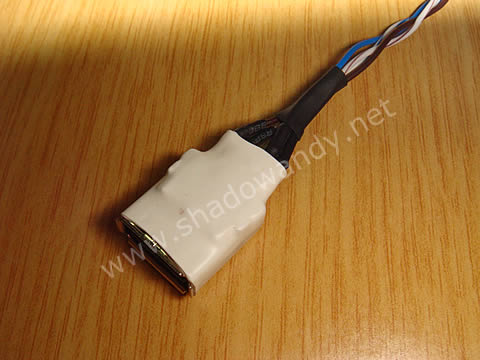

Internal USB Hub - Heat shrinked

My nice white heat shrink tubing!
