TP-Link HS110 Smart Plug

The TP-Link HS110 is a WiFi Smart Plug with energy monitoring capability. You can remotely switch connected appliance on or off and also monitor the appliance’s energy consumption. It is great for those plugs that are hidden and out-of-sight (e.g. TV console).

I managed to get it via Amazon Prime Now (Singapore) for S$29 after a S$20 discount coupon (“VISA20”). Most brick-and-mortar stores are retailing for S$65.

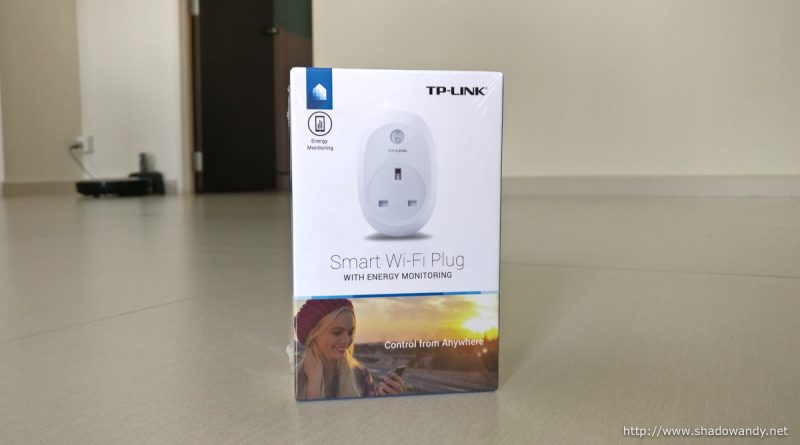

TP-Link HS110 WiFi Smart Plug
Wireless 802.1b/g/n
1T1R
Physical button for power toggling Yes
Overcurrent Protection Yes (fused)
Energy Monitoring Yes
Mobile App Support Android, iOS
Logitech Harmony Support No
Amazon Echo Support Yes
IFTTT Support No

Package Contents

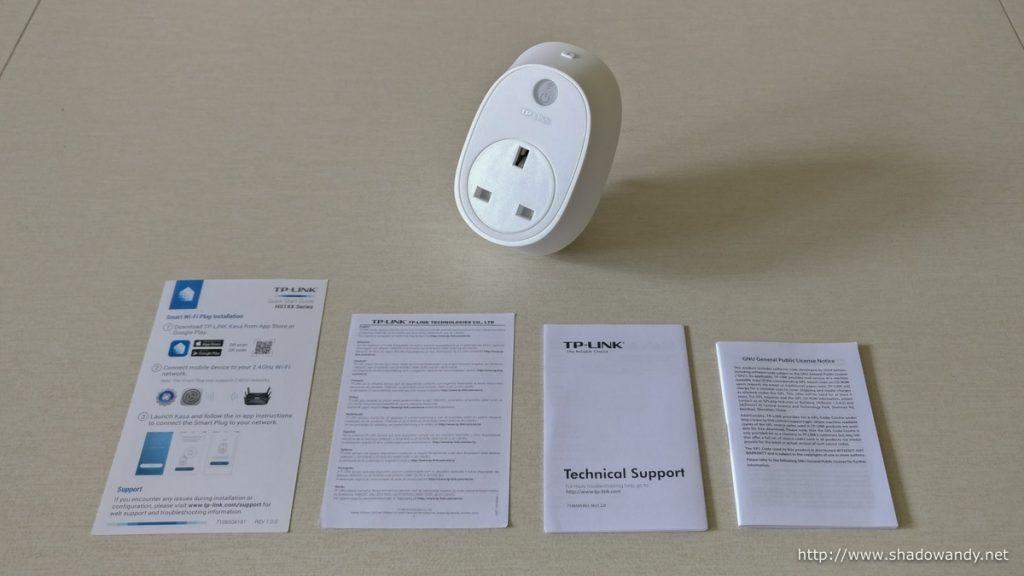

The package came with the TP-Link HS110 WiFi Smart Plug, installation guide and set of documentations.

In the package, you will find:

The build of TP-Link HS110

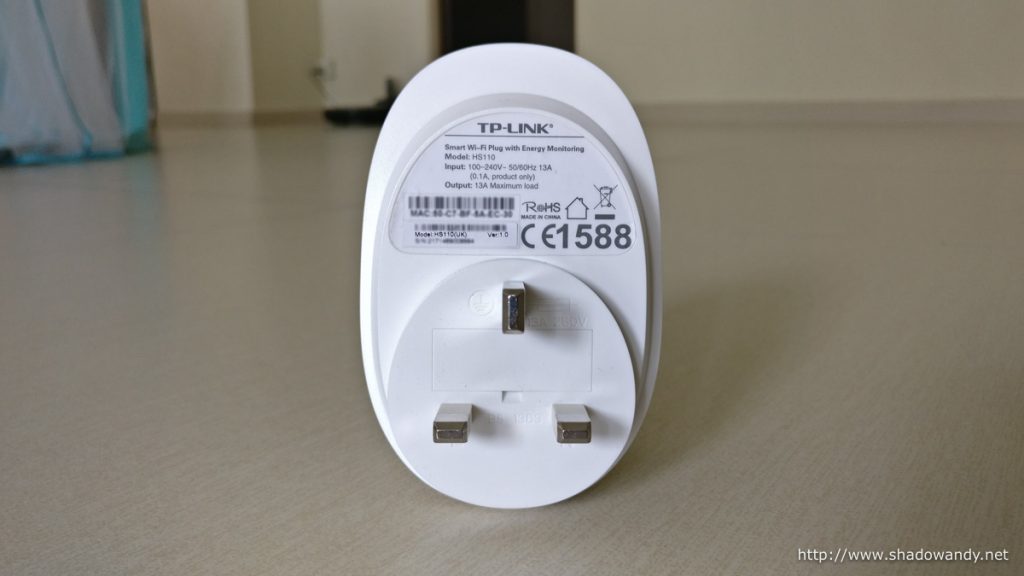

The TP-Link HS110 with UK-style electrical pins.

I got the UK plug model which shouldn’t differ much from other variants except for the pin/ connector, voltage and support for wireless channels.

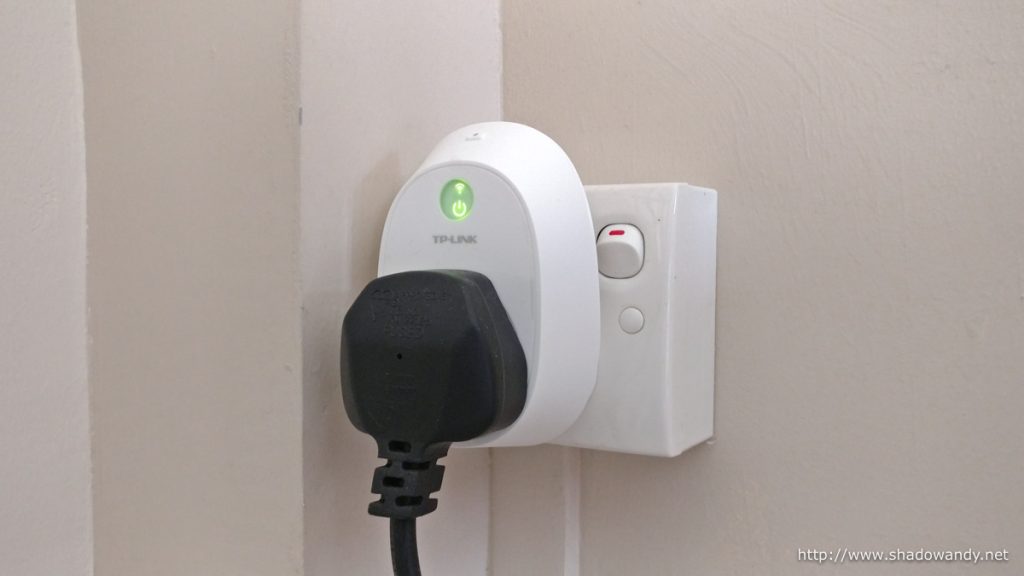

The TP-Link HS110 Smart Plug should be slim enough not to obstruct anything when used on a double socket.

The TP-Link HS110 WiFi Smart Plug is generally made of plastic except for the electrical connectors. It fits well in both my single and double socket outlets without obstructing other electrical sockets or being obstructed by walls.

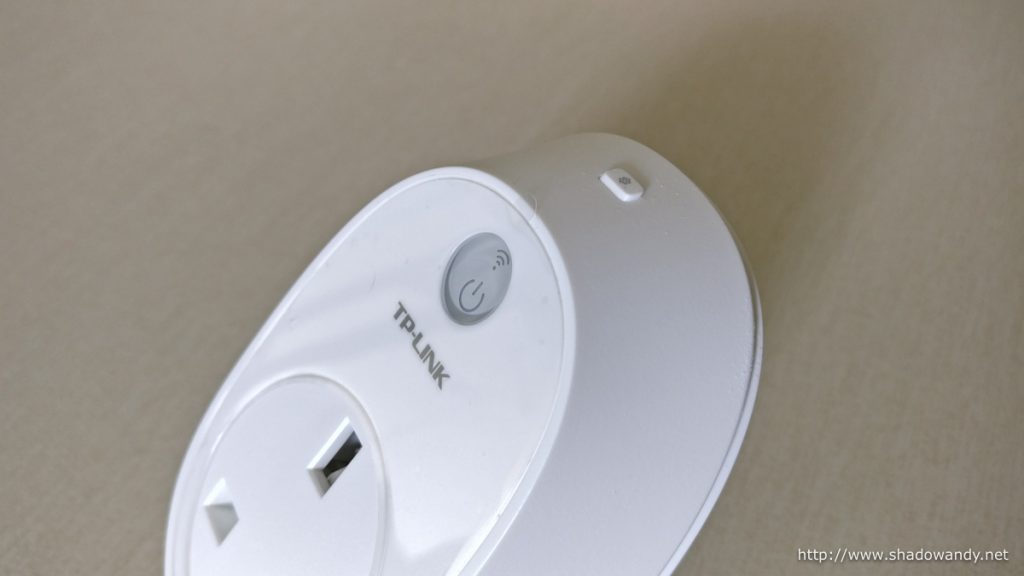

The round button allows you to toggle the power to the connected appliance. It is also the status indicator. The rectangular setup button on top allows you to initiate wireless pairing or reset the smart plug.

On the front face of the TP-Link HS110 WiFi Smart Plug, there is a physical button for toggling the power to the connected appliance. With this, you can manually switch on or off your appliance without going through the TP-Link Kasa app.

Behind this button are the status indicators for WiFi and power state. The indicators glow thru the translucent button.

At the top of the smart plug is the settings button. It allows you to initiate the WiFi configuration process or reset the it to factory defaults.

The TP-Link HS110 Smart Plug has user changeable fuse. It supports up to 13A.

The TP-Link HS110 WiFi Smart Plug has a fuse to provide overcurrent protection.

TP-Link Kasa

The TP-Link HS110 Smart Plug can be controlled via the TP-Link Kasa mobile app (Android and iOS) and Amazon Echo. There is a Kasa Smart Home Skill for Alexa.

The set up of a new TP-Link Smart Plug is pretty much guided. I managed to have it connected to my home network within 10 minutes.

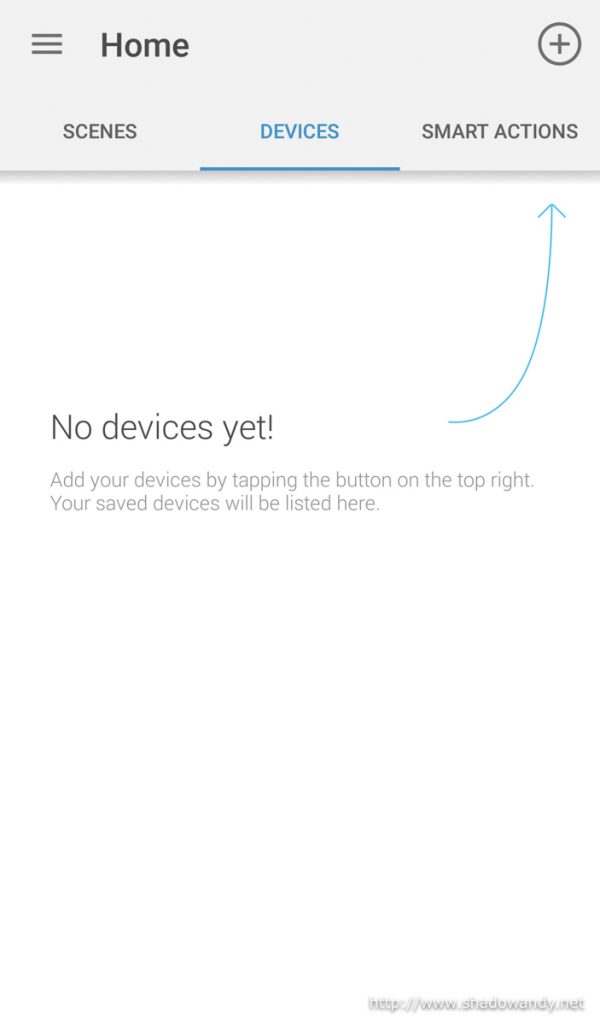

Upon launching TP-Link Kasa, just click on the ‘Add’ button to add the new TP-Link HS110 WiFi Smart Plug.

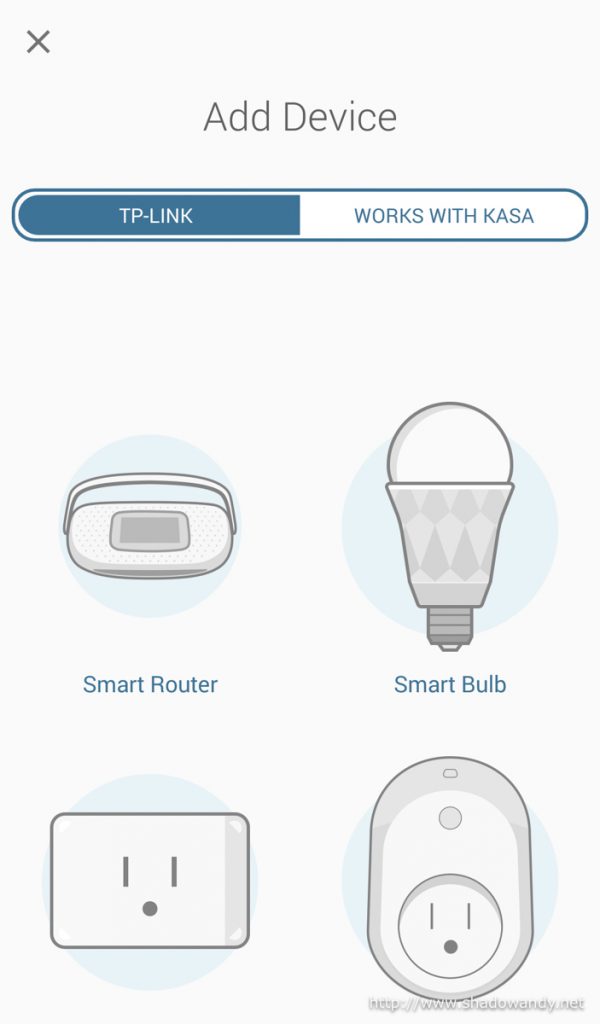

Choose the device that you are adding. For me, I am choosing the Smart Plug.

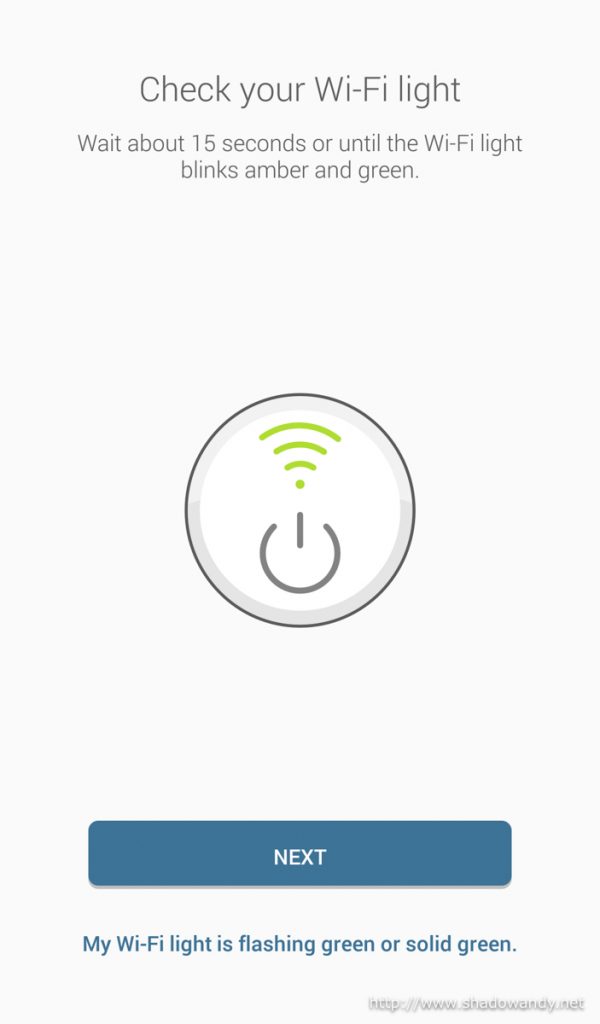

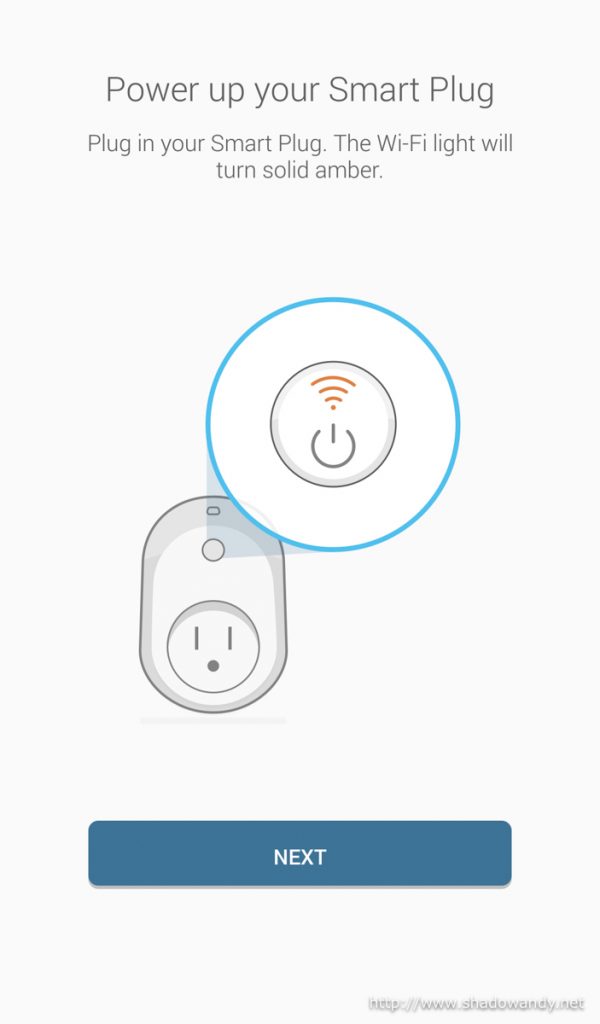

Following the guided process to ensure the Smart Plug is in setup mode before continuing.

Guided process to add the Smart Plug to your home network.

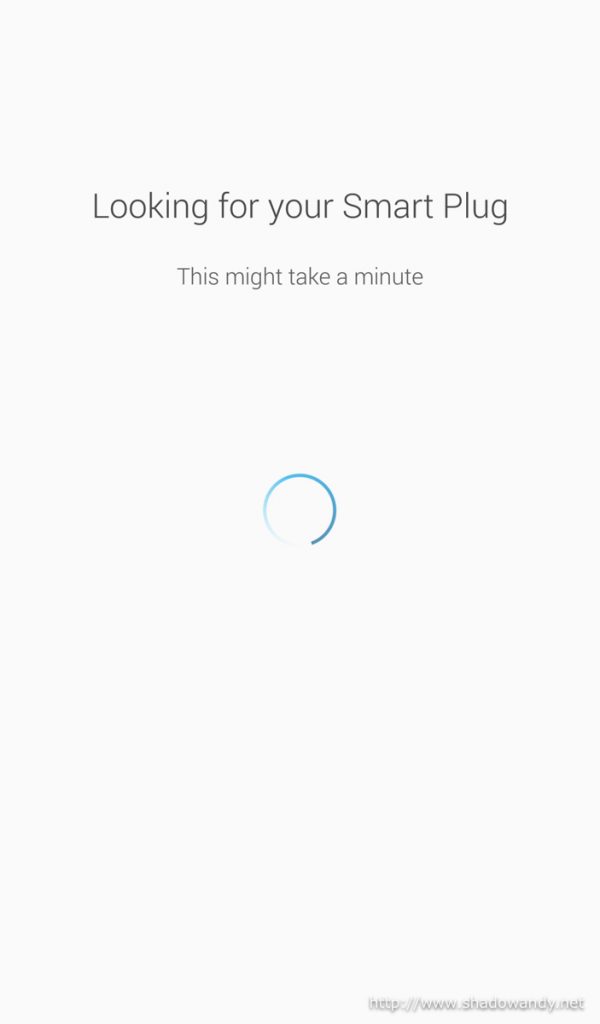

TP-Link Kasa looking for the Smart Plug.

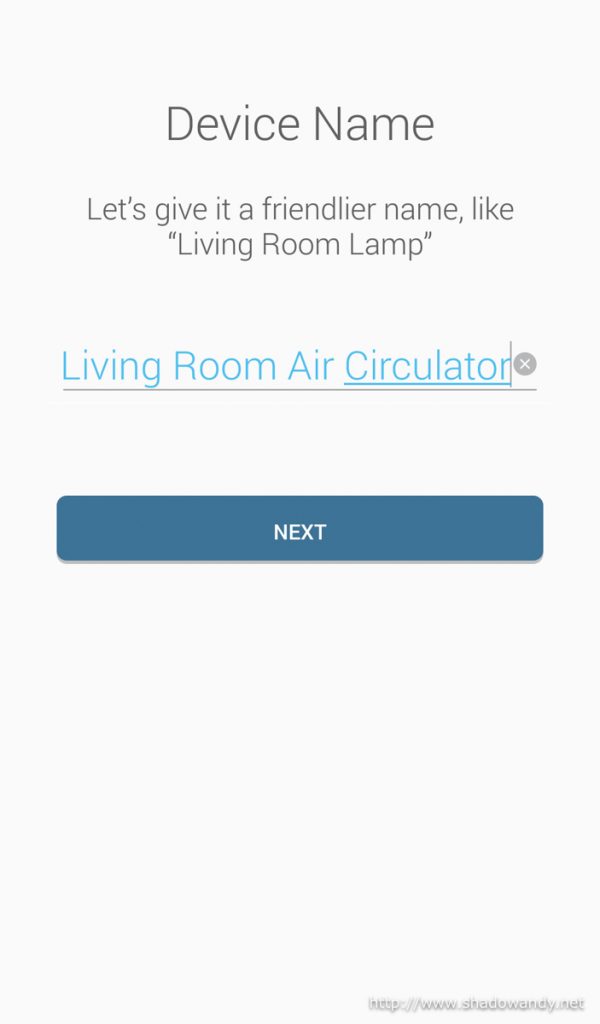

It found the Smart Plug and now let’s give it a meaningful name to identify it.

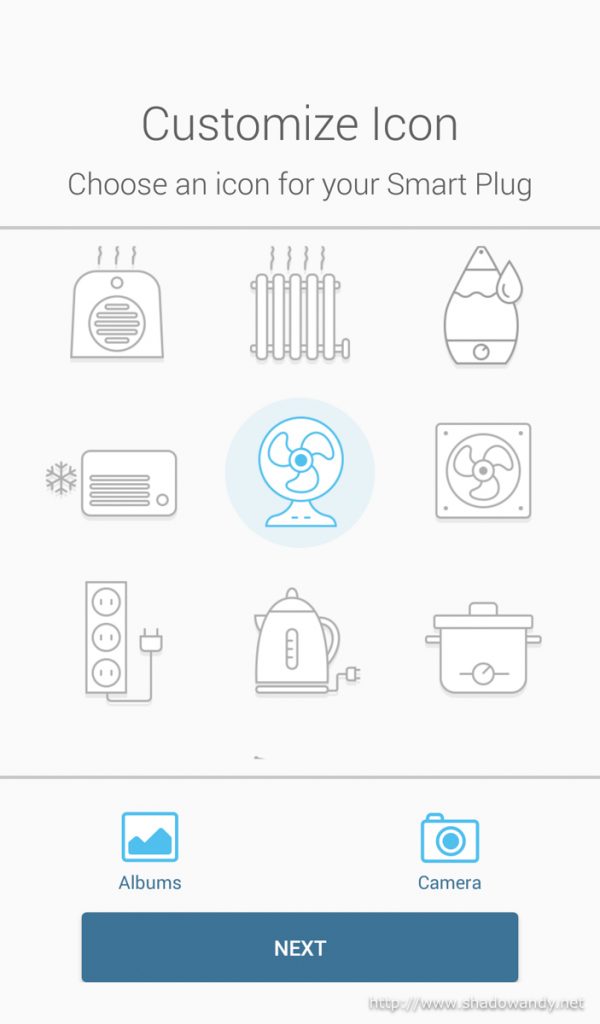

Selecting a representative icon for the appliance.

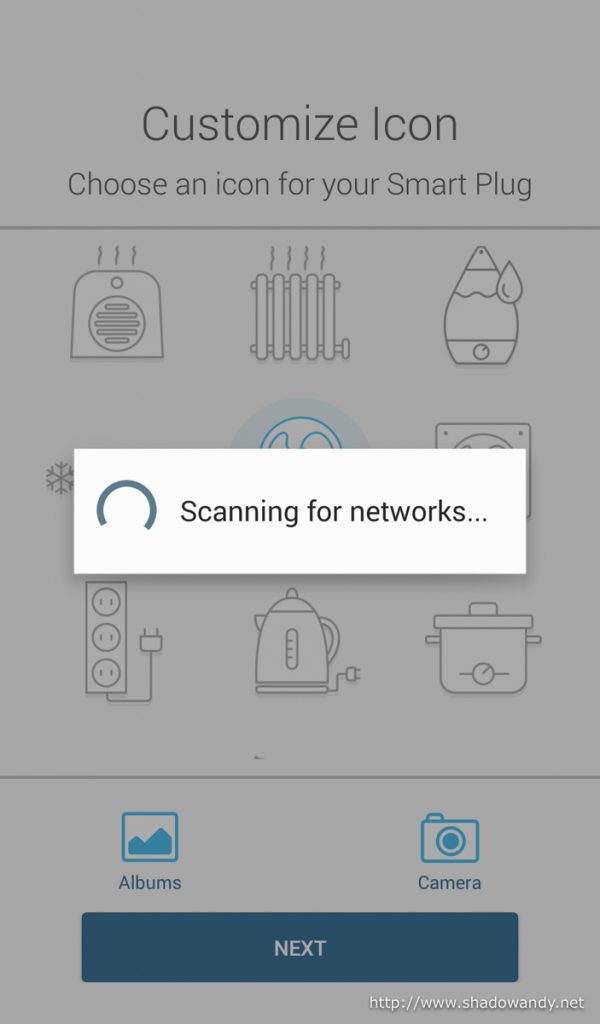

Hooking the TP-Link Smart Plug to your home network.

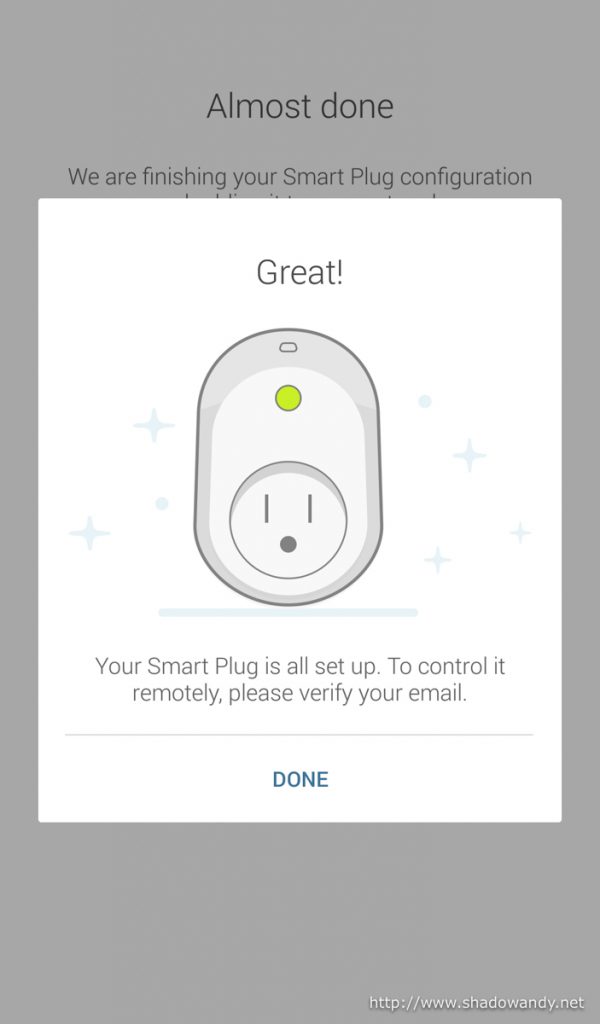

We have successfully set up the TP-Link Smart Plug.

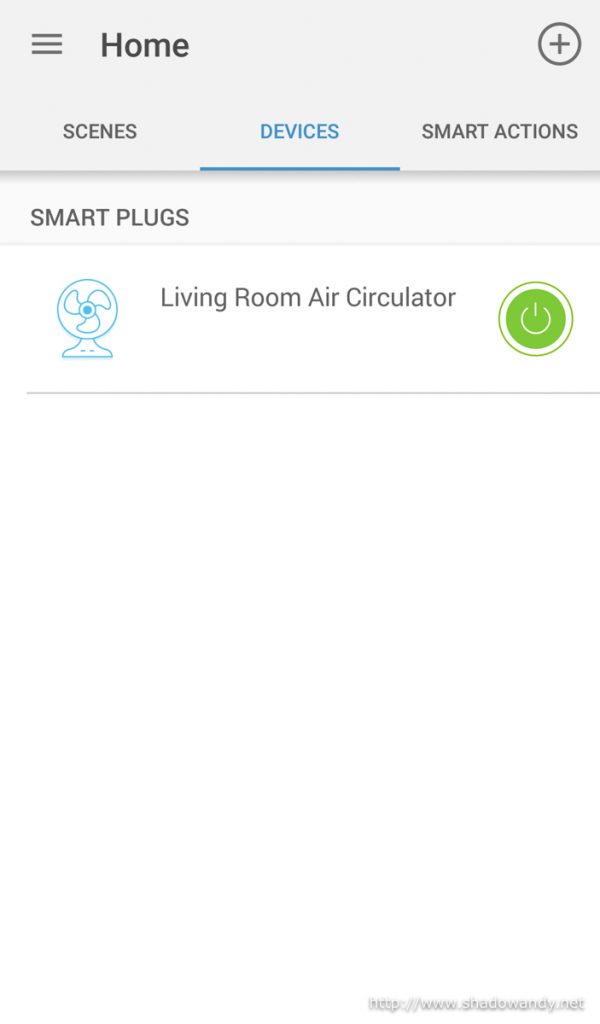

The newly added appliance shown up on the dashboard.
